| Model | BK-DMH120D | BK-DMH300D | ||
| Capacity | 0.001 ~120g | 0.005~300g | ||
| Density Resolution | 0.0001 g/cm3 | 0.001 g/cm3 | ||
| Density Range | 0.0001 ~99.9999g/cm3 | 0.001 ~99.999g/cm3 | ||
| Measuring Time | About 5s | |||
| Solid
Mode |
Measuring Principle | Archimedes principle | ||
| Measurable Items | Density of general non-absorbency solid. Density of porosity materials. Oil length of oil bearing. Porosity of porosity materials. DIN volume abrasion loss of rubber. Powder density. Water absorption rate. | |||
| Specific Gravity | Unibody injection forming professional specific gravity measurement frame Size: 135*50*116mm (L*W*H) | |||
| Measuring Frame
Measuring Tank |
Unibody injection forming transparent professional measuring tank
Size: 169*98*83mm (L*W*H) |
|||
| Mixed Material
Percentage |
Function
introduction |
Automatically read the percentage of the main material in composite which consist of two materials | ||
| Setting | Freely set the density value of main material and subordinate material | |||
| Display | Density value, percentage of main material | |||
| Liquid
Mode |
Measuring Principle | Archimedes principle displacement method | ||
| Weight Value Data Storage | 3 groups | |||
| Specific Gravity Measuring Frame | Stainless steel specific gravity measuring frame | |||
| Result Display | Density and Baume value | |||
| Result Testing Method | Distilled water testing | |||
| Calibration Mode | Auto correction, auto detection. | |||
| Standard Accessories | Common Use: Tweezer, thermometer, 100G weight, windshield, power transformer. Solid Use: Tank, testing board, a set of particle measuring assembly, a set of floating body measuring assembly.
Liquid Use: Measuring plate, measuring frame, DE-20A standard liquid measuring assembly |
|||
| Optional Accessories | DE-40 printer, DE-20B anti corrosive liquid measuring assembly | |||
| Power Supply | AC110/220V±10%, 50/60HZ | |||
| Package Size(W‘D‘H)mm | 450*200*360 | |||
| Gross Weight(kg) | 4.5 | |||
Available on backorder

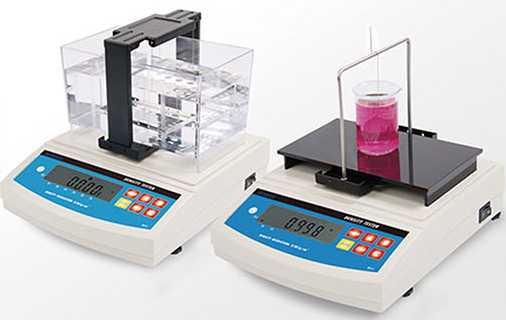

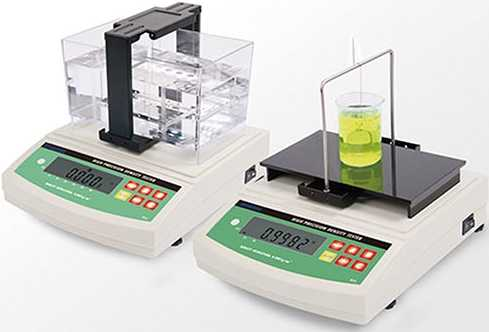

High-precision Solid and Liquid Densimeter
Application:
It is suitable for the field of quality management, cost control, new materials researching, scientific academies, researching key laboratories, quality inspection, etc.
Any form of solid could be measured, including objects of hydroscopicity, non-absorbency, high-viscosity. Measurement of special liquid such as volatile liquid, corrosivity liquid, strong acid and strong alkali liquid need optional accessory DE-20B anti corrosive liquid measuring assembly.
Features:
- Automatically check whether density Is qualified or not and prompt alarm.
- Automatic zero tracking, buzzer warning, and overload warning.
- Function of solution compensation: necessary if liquid other than water is used as a medium for measuring.
- RS-232C is included.
