Technical Parameters:
|
Model |
OS40-S | OS20-S | OS40-Pro |
OS20-Pro |
| Max. Stirring Capacity | 40L | 20L | 40L | 20L |
| Motor Input | 120W | 60W | 120W | 60W |
| Motor Output | 100W | 50W | 100W | 50W |
| Speed Range | 50~2200rpm | |||
| Speed Display | LED | LCD | ||
| Speed Display Accuracy | ±3rpm | |||
| Max. Torque | 600mN.M | 400mN.M | 600mN.M | 400mN.M |
| Torque Display | / | LCD | ||
| Overload Protection | Visual alarm, motor automatic stop | |||
| Max. Viscosity | 50000mPas | 10000mPas | 50000mPas | 10000mPas |
| Chuck Diameter Range | 0.5〜10mm | |||
| Protection Type | IP21 | |||
| Working Environment | 5~40°C, 80%RH | |||
| Interface | / | RS232 | ||
| Power Consumption | 130W | 70W | 130W | 70W |
| Power Supply | AC110/220V+10%, 50/60HZ | |||
| Standard Accessory | 1 | Universal plate stand 18900131, Propeller stirrer 18900071 | ||
| External Size(W*D*H) | 83*186*220mm | |||
| Package Size(W’D’H) | 205*335*475๓๓ | Main body & Propeller stirrer: 480*380*450 Universal pate stand: 800*360*130 | ||
| Gross Weight | 5.5kg | Main body & Propeller stirrer: 6kg Universal pate stand: 8kg | ||

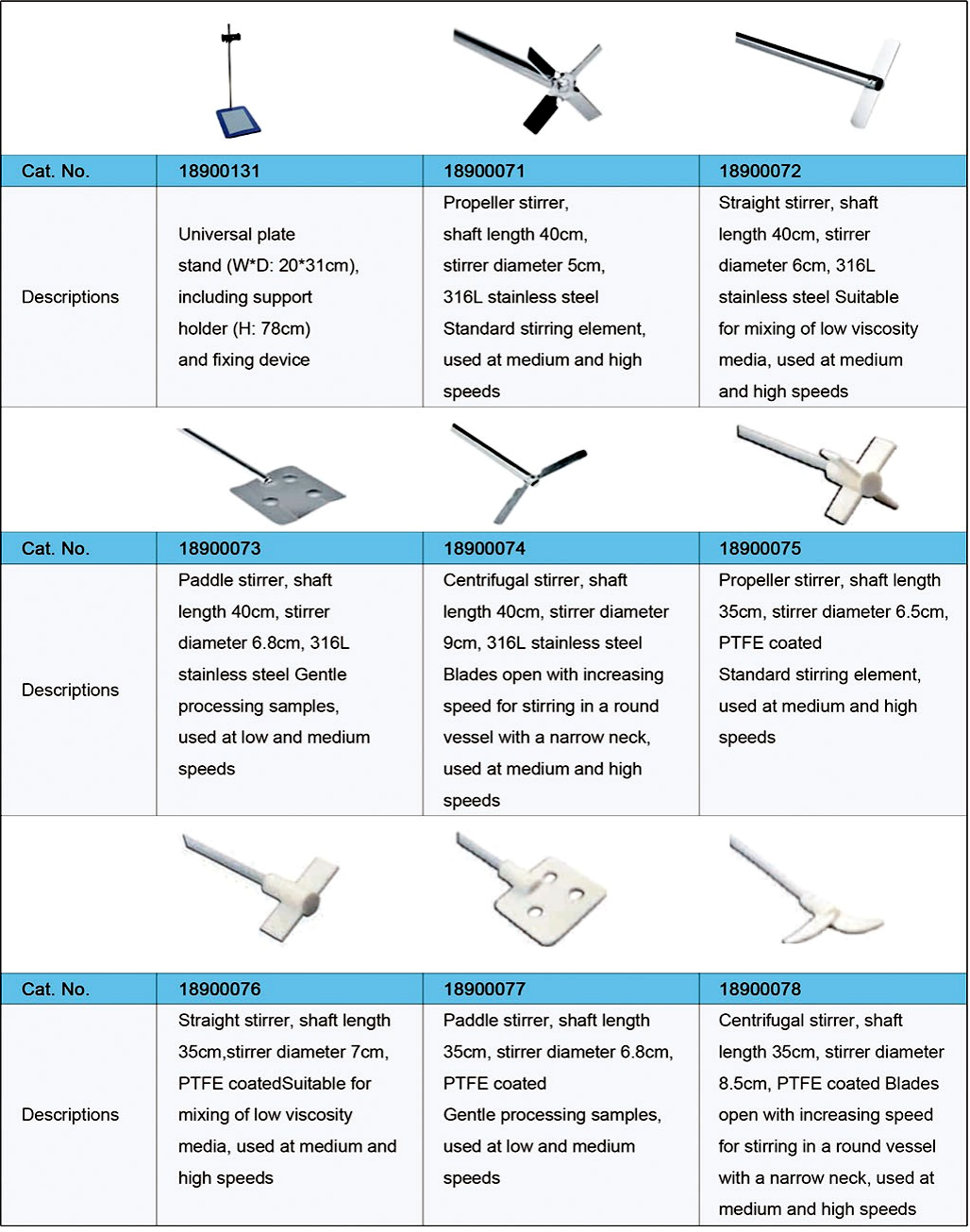

Optional Accessories:
